Mc-91 Flattop....She's a real GEM

Post by REAR » Thu Mar 12, 2020 8:12 am

Its been quite a while since I ran a McCulloch engine, been running mostly small Benders and my Clinton for the past few years so I figured I would mix things up alitlle and put a Mc-91 together. Now don't get me wrong, I love my little Bender and Clinton and they will be coming to the sprint track with me but I just want to get back into my Mc's alittle since I am going back to running Mc's at select enduro events this coming season.

For this build I chose the Mc-91series engine because they are a very popular engine that run well, are easy to tune and maintain and they have some good performance to boot plus any needed parts are fairly easy to come by and I have a nice block on the shelf. I also chose the Mc-91 because over the years I have accumulated a nice selection of bolt on hot-rod goodies and I figured what the hell, I might as well make use of of them.

No fancy porting was done to the block, just a little clean up here and there. I'm looking for a nice reliable good running engine so no need to get wild with porting plus I will be running a box muffler and a Horstman Rev-Grip clutch so good torque is imperative and the stock ports are pretty good right from the factory.

Fresh crank bearings, seals, and rod needles, heads torqued, timing set and now its time to bolt on them 'goodies'.

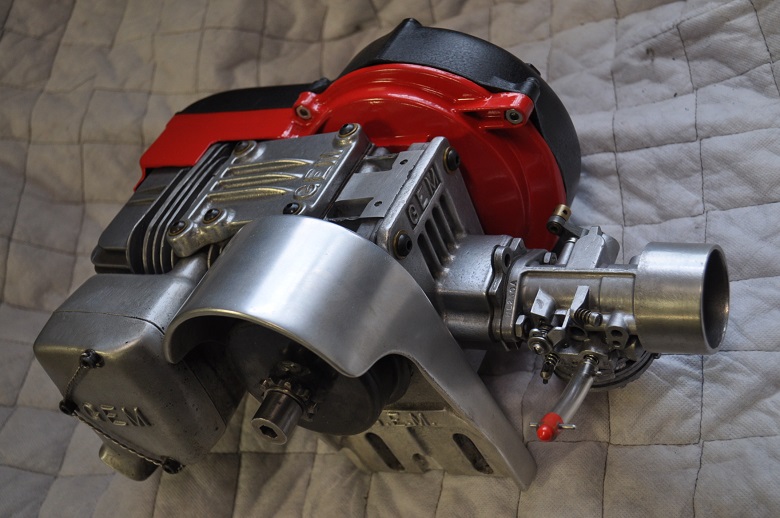

Going to go with a little different configuration with this one compared to a stock McCulloch. I've chosen to go with a GEM bottom stuffer manifold with a West Bend v-reed cage running a Tilloston HL-250 carb sporting a GEM air filter cup pumping a Alky-Klotz mix. Of course with this set-up I had to add a GEM block off top plate where the stock carb-manifold went. Got a GEM throttle bracket on the carb also to hook up the throttle linkage.

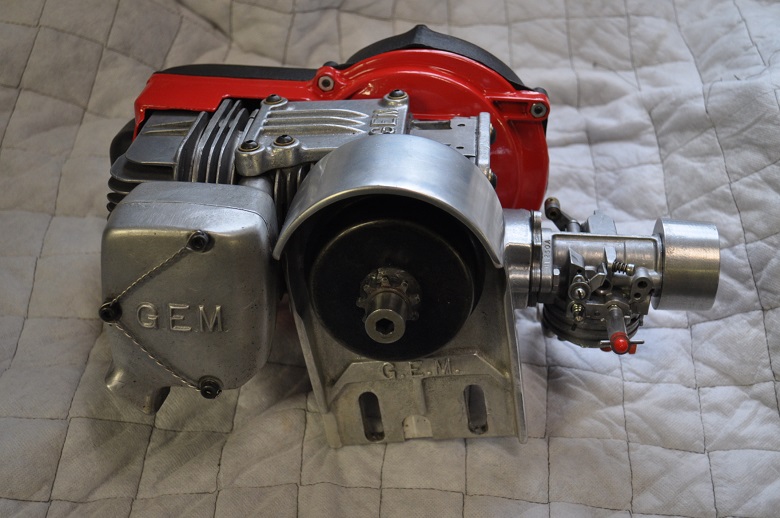

Will be exhausting the gases out with a early style GEM box muffler and bolting the engine onto a GEM side plate since I run unimounts.

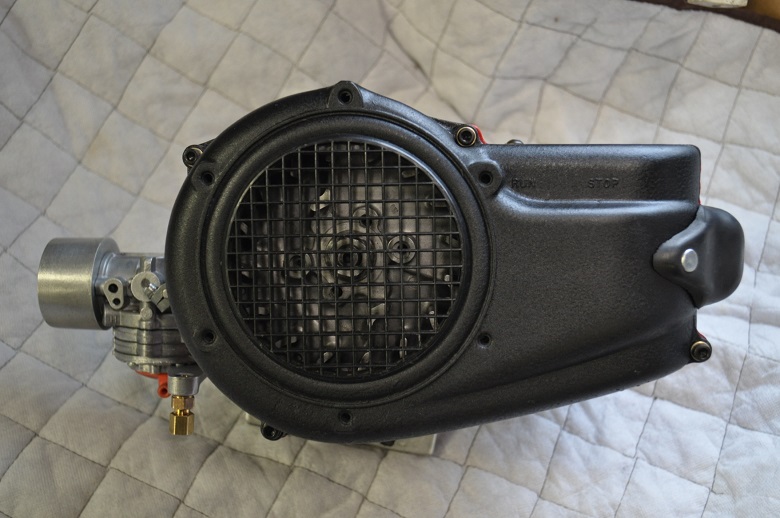

Got to liking the Clinton red paint so much I shot the inner cover the same color plus I left the flywheel screen on the black wrinkled side cover since I will be nut starting this one with a clutch nut provided by my pal Don Axe.

There you have it, a good looking motor that should be very reliable and just the ticket for some sideways sliding fun with a whole bunch of GEM going on.







See you all at THE BIG ONE.

R.E.A.R.

ted johnson
Posts: 1506
Joined: Fri Jun 15, 2007 7:59 am

Re: Mc-91 Flattop....She's a real GEM

Post by ted johnson » Thu Mar 12, 2020 1:48 pm

She's a little sweetie, Bob! I ran a lot of open Macs with the bottom carb setup, though we used the GEM dual carb engine mount way back then. They ran great. Ted

Chris Marchand
Posts: 271
Joined: Fri Aug 22, 2008 7:54 pm
Vintage Karting items owned: to daggone many
User Agreement: Yes

Re: Mc-91 Flattop....She's a real GEM

Post by Chris Marchand » Thu Mar 12, 2020 4:08 pm

Hey Ted, Bob needs to send that Mac to me and Dick T. so we can run it a few laps here in Florida. Then it will be broken in and ready to go. :o

Rob Voska
Posts: 1470
Joined: Fri Jun 15, 2007 9:04 am

Re: Mc-91 Flattop....She's a real GEM

Post by Rob Voska » Thu Mar 12, 2020 8:23 pm

Sand............................ breaks a motor in fast!

User avatar
Scott Kneisel
Posts: 463
Joined: Mon Mar 24, 2008 7:48 pm
Vintage Karting items owned: '63 Rupp Grand Prix, 66 Rupp Chappy, Mc6's, Mc8, Mc10's, Mc20's
Lotsa' other Macs
User Agreement: Yes
Location: Farmington, NY

Re: Mc-91 Flattop....She's a real GEM

Post by Scott Kneisel » Mon Mar 16, 2020 7:13 am

Nice Bob,
Looks almost like the engines you and Rob brought to the first Avon event. I think you were running HR carbs then but you both tore up the track. I looked for some pics but this is all I could come up with.
Memories!!

REAR
Posts: 892
Joined: Sat Jun 16, 2007 10:19 am

Re: Mc-91 Flattop....She's a real GEM

Post by REAR » Mon Mar 16, 2020 8:11 am

Scott,

Thats her, went through it but switched out the rod needles to a set of my own, swapped the HR carb and manifold to a HL set-up, went to a nut start and added the flywheel screen.

I put together 3 Mc's recently and between all the degreaser, paint, loctite, oil, and gasket sealant I got on my hands I'm pretty sure that stuff killed just about every virus out there on my hands.

Hoping to get out and run her soon then bring her up to your June meet.

Bob

User avatar
Scott Kneisel
Posts: 463
Joined: Mon Mar 24, 2008 7:48 pm
Vintage Karting items owned: '63 Rupp Grand Prix, 66 Rupp Chappy, Mc6's, Mc8, Mc10's, Mc20's
Lotsa' other Macs
User Agreement: Yes
Location: Farmington, NY

Re: Mc-91 Flattop....She's a real GEM

Post by Scott Kneisel » Tue Mar 17, 2020 6:50 am

Thats great Bob, I look forward to seeing you in June, then again on Labor Day.

Bob Alexander
Posts: 26
Joined: Thu Jun 21, 2012 12:33 pm
Vintage Karting items owned: 1961 Lancer
1963 Dart GP
1967 Dart "A" Bone
1968 SAE clone
1973 SAE clone
User Agreement: Yes
Location: NW Ohio

Re: Mc-91 Flattop....She's a real GEM

Post by Bob Alexander » Mon Apr 20, 2020 3:48 pm

Here's my flattop for this year.
Attachments

REAR
Posts: 892
Joined: Sat Jun 16, 2007 10:19 am

Re: Mc-91 Flattop....She's a real GEM

Post by REAR » Tue Apr 21, 2020 7:38 pm

Big Thumbs Up.


R.E.A.R

Ernie Shores
Posts: 44
Joined: Fri Jun 15, 2007 7:42 pm
Vintage Karting items owned: Lots of Fox Karts!!!
Location: Ft Walton Bch. Fla

Re: Mc-91 Flattop....She's a real GEM

Post by Ernie Shores » Wed Apr 22, 2020 5:48 am

If one bottom carb looks good, then duals should look great.
